矿用无线通信装置
ZT11.1矿用无线通信装置作为灾后应急与救援的生命保障线，肩负灾区人-机-环-管等各种救援信息的传输，是救援队伍与指挥中心通信联络的关键技术与装备。装置首次实现了超远距离单跳传输、单链多跳传输、高带宽传输等功能，可以将井下环境侦测信息、单兵防护信息、救灾音视频等数据快速上传至指挥中心，并通过大数据算法分析为指挥中心提供辅助决策。装置专为矿山井下应急救援及日常补充通信设计，在灾变或应急环境下保障通信畅通，支持音视频等大容量数据传输。
The ZT11.1 mining wireless communication device serves as a lifeline for emergency response and rescue after disasters, shouldering the responsibility of transmitting various rescue information such as human, machine, environment, and management in the disaster area. It is a key technology and equipment for communication and liaison between rescue teams and the command center. This device has for the first time achieved functions such as ultra-long-distance single-hop transmission, single-chain multi-hop transmission, and high-bandwidth transmission. It can quickly upload data such as underground environment detection information, individual soldier protection information, and disaster relief audio and video to the command center, and provide auxiliary decision-making for the command center through big data algorithm analysis. The device is specially designed for emergency rescue and daily supplementary communication in underground mines, ensuring smooth communication in disaster or emergency situations and supporting the transmission of large-capacity data such as audio and video.

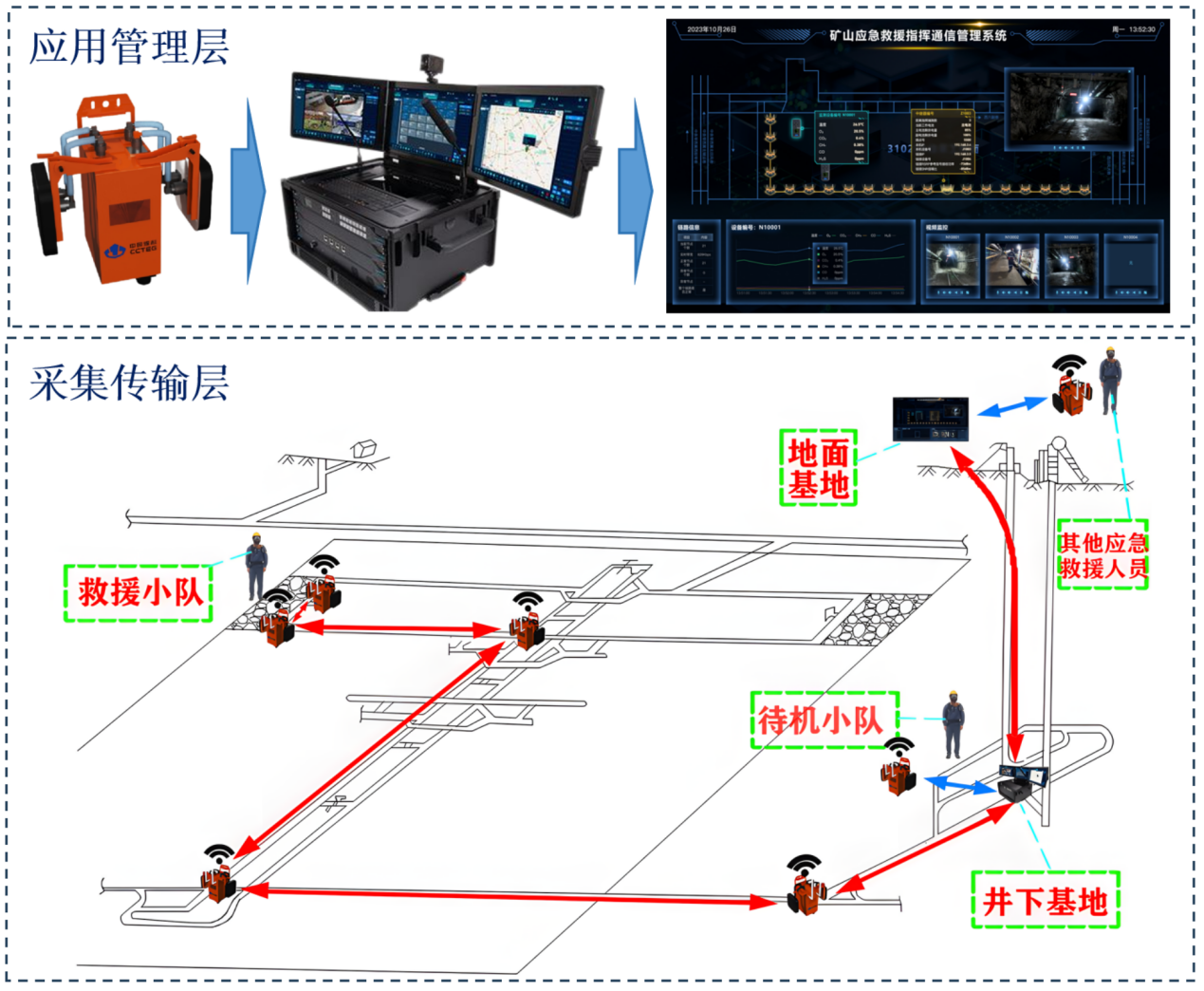

1.多跳高带宽通信组网:系统可实现超过20跳中继7Mbps以上带宽的快速组网，为国内首创;
2.快速自组网/自愈合:系统根据信号自动搜索中继和连接设备，自动检测并重新选择路径，绕过故障点重新组网，实现应急网络的自组与自愈;
3.开源设备无缝接入:提供通用通信接口，支持接入无线通信设备，实现队员间、前后场语音、图像、视频等数据传输和通信，同时可接入环境、体征、防护工况等监测设备，实现监测数据同步和回传，为救援现场和指挥中心提供实时风险态势感知；
4.超长持续通信与待机:系统采用超低功耗处理芯片，整机待机时间可达8小时，满足并下长时间救援工作的需要。
1. Multi-hop high-bandwidth communication networking: The system can achieve rapid networking with over 20 hops and a bandwidth of more than 7Mbps, which is a domestic first.
2. Rapid self-organizing network / self-healing: The system automatically searches for relays and connected devices based on signals, automatically detects and reselects paths, bypasses fault points to reorganize the network, and realizes the self-organization and self-healing of emergency networks.
3. Seamless integration of open-source devices: It provides a universal communication interface, supports the connection of wireless communication devices, and enables data transmission and communication of voice, images, and videos between team members and between the front and rear fields. At the same time, it can connect environmental, vital sign, and protective condition monitoring devices to achieve real-time synchronization and transmission of monitoring data, providing real-time risk situation awareness for the rescue site and command center.
4. Ultra-long continuous communication and standby: The system uses ultra-low power consumption processing chips, and the entire machine can have a standby time of up to 8 hours, meeting the needs of long-term rescue work underground.
技术参数
1.支持中继跳数:≥20跳;
2.满链接首尾带宽:≥7Mbps;
3.自组网、自愈合时间:≤120s;
4.单跳间无线通信距离:>1km;
5.无线通信距离总和:15km;
6.基站重量:≤3.5kg;
7.续航时间:≥8小时;
8.开源设备接入数:≥20个;
9.防爆型式:矿用本质安全型;
10.防爆等级:ExiblMb。
